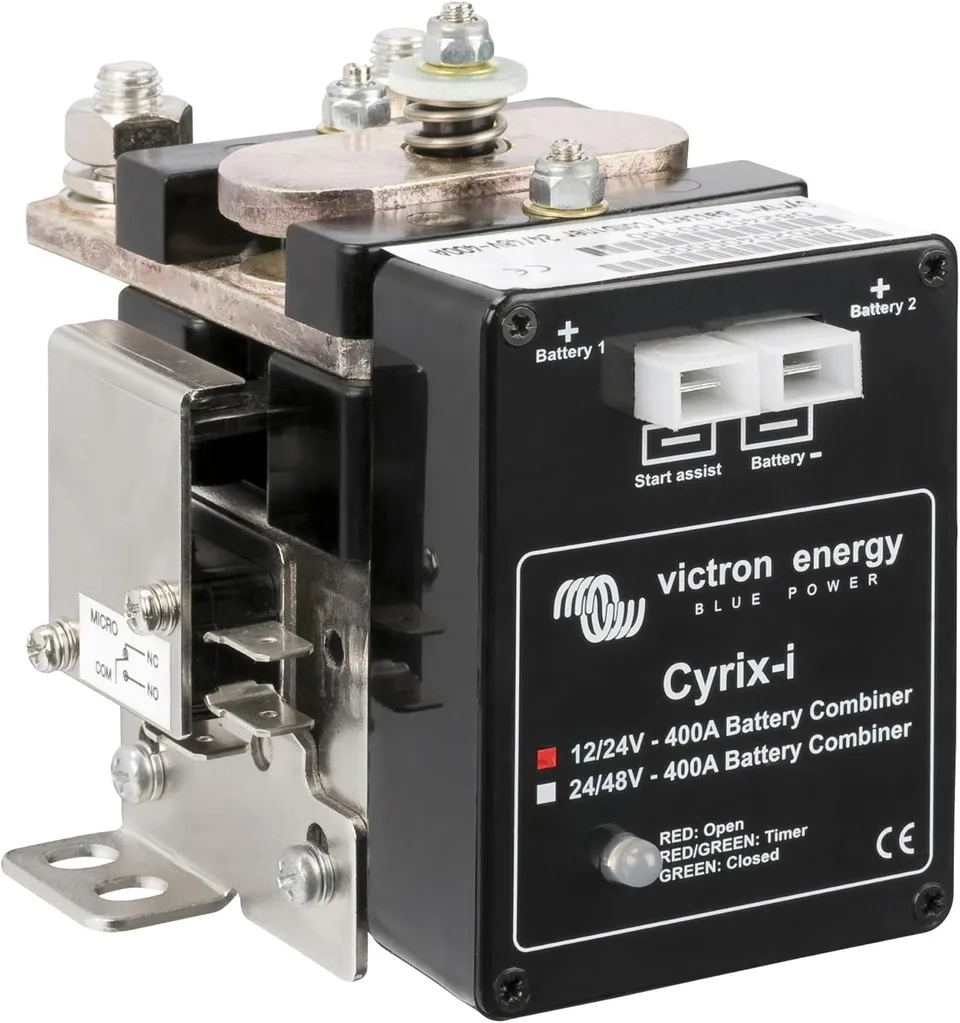

Victron Energy Cyrix-i 12/24-Volt 400 amp Intelligent Battery Combiner
Combine and manage two battery banks with the Victron Energy Cyrix-i 12/24V 400A Intelligent Battery Combiner. This smart combiner prevents unwanted switching, offers start assist for emergencies, and has virtually no voltage loss. Get it at $51.75 (compare at $105) – a 50% savings, ideal for marine, RV, and automotive applications.
Specifications
- Brand: Victron Energy
- Model: Cyrix-i
- Voltage: 12/24V
- Current Rating: 400A
- Engage/Disengage: Intelligent monitoring with time delay
- Start Assist: Manual override via push button or switch
- Protection: Overheating protection
Key Features
Intelligent Battery Monitoring
Prevents unwanted switching by analyzing voltage trends and avoiding rapid cycling.
Start Assist Function
In emergencies, manually engage the combiner for 30 seconds to start a vehicle with a discharged starter battery.
No Voltage Loss
Replaces diode isolators with virtually no voltage drop, so alternators and chargers operate efficiently.
How Does Start Assist Work?
Press the push button or activate a switch to connect batteries in parallel for 30 seconds, allowing the good battery to start the engine. This is useful when the starter battery is depleted.
Compatibility and Use Cases
Works with 12V or 24V (auto-detect) lead-acid batteries. Commonly used to combine starter and house batteries in boats, RVs, and vehicles. For lithium, consider the Cyrix-Li-ct model.

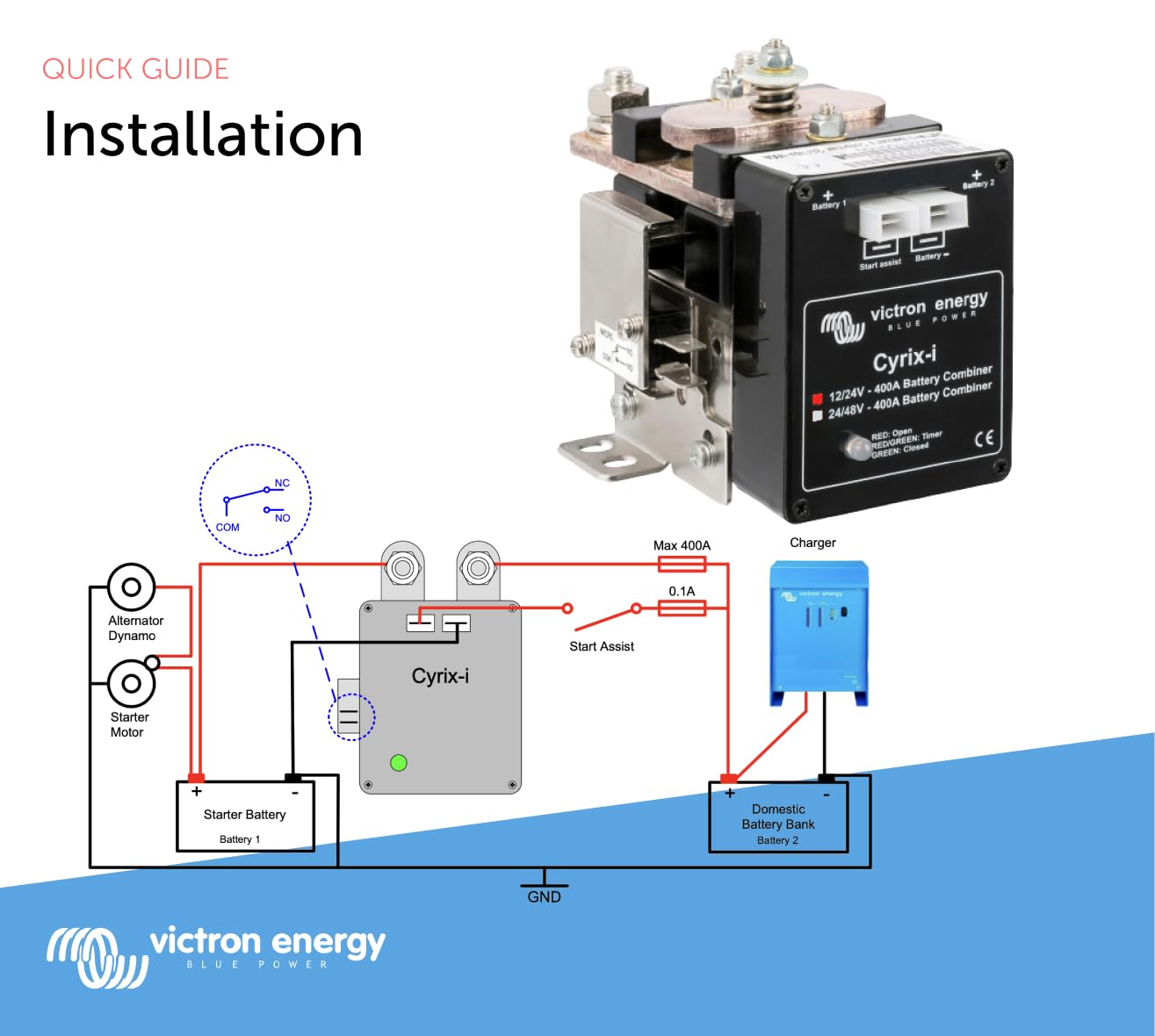

Replacing a Diode Isolator
Replace your diode isolator with the Cyrix-i for efficient charging without voltage drop. Connect the alternator output to the common terminal and the batteries to the two other terminals; the Cyrix-i automatically manages connection.
