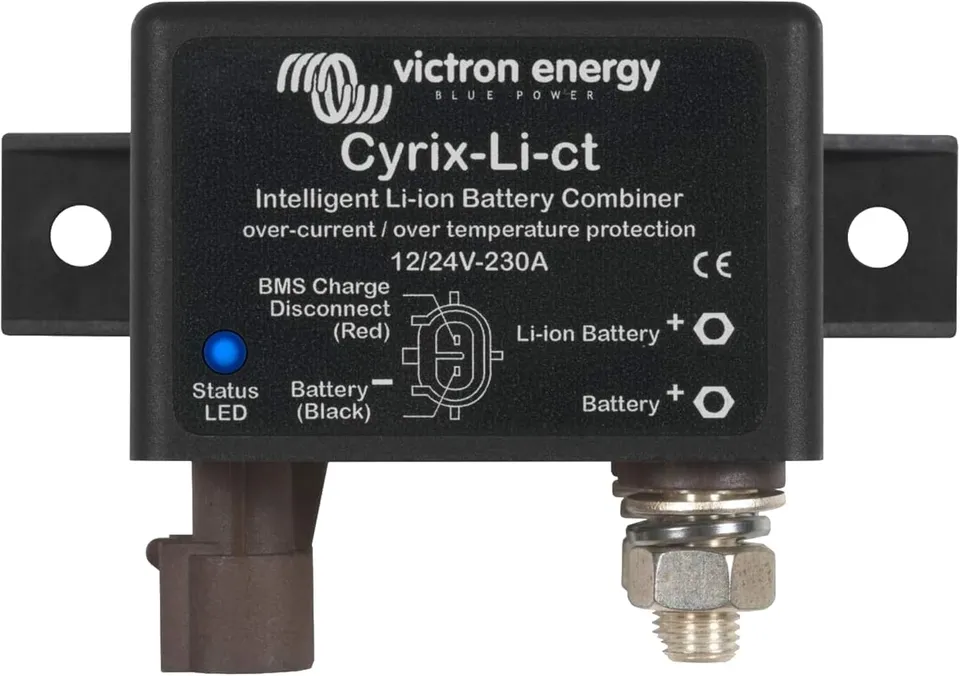

Victron Energy Cyrix-Li-ct 12/24V 230A Intelligent Li-ion Battery Combiner

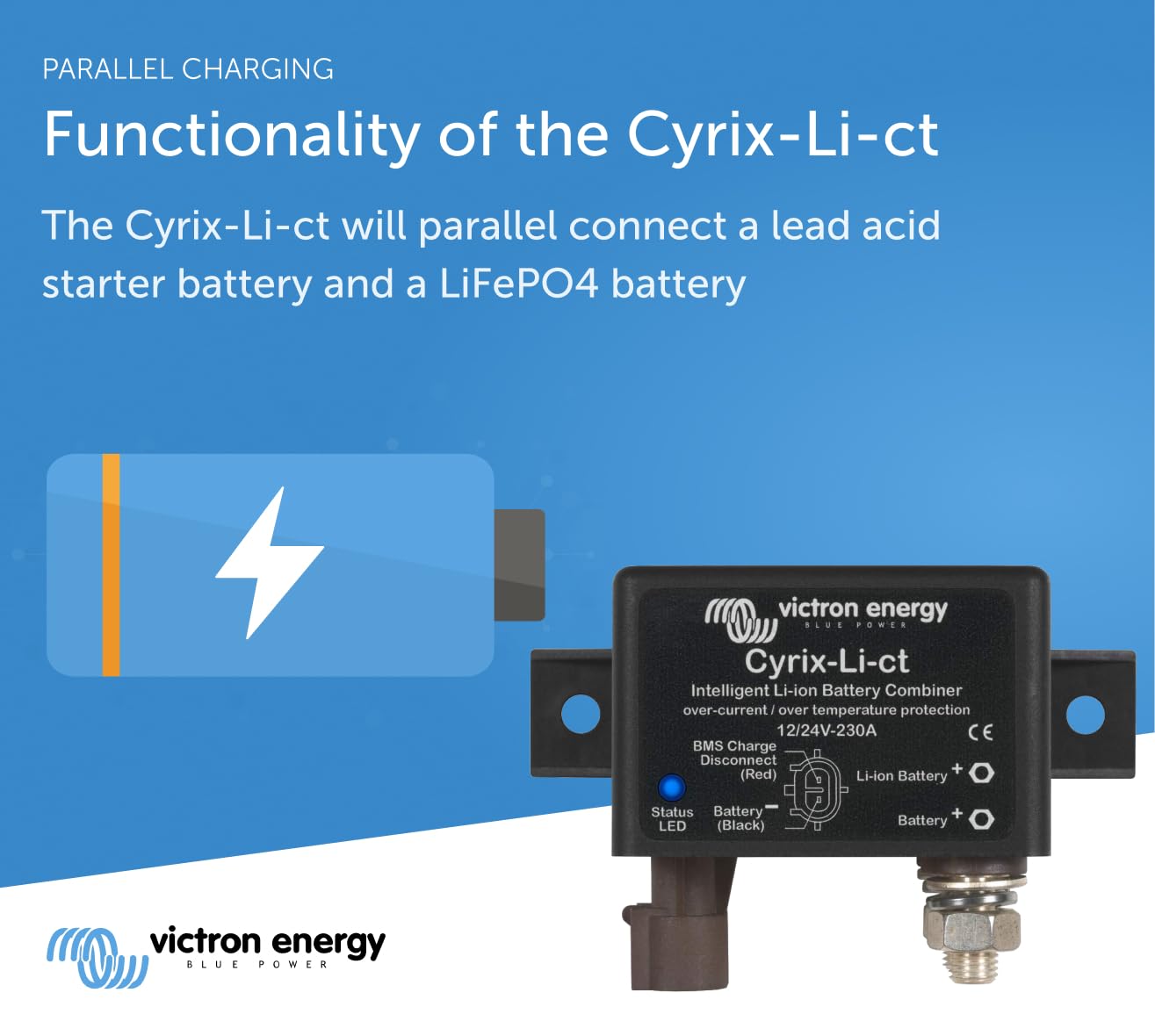

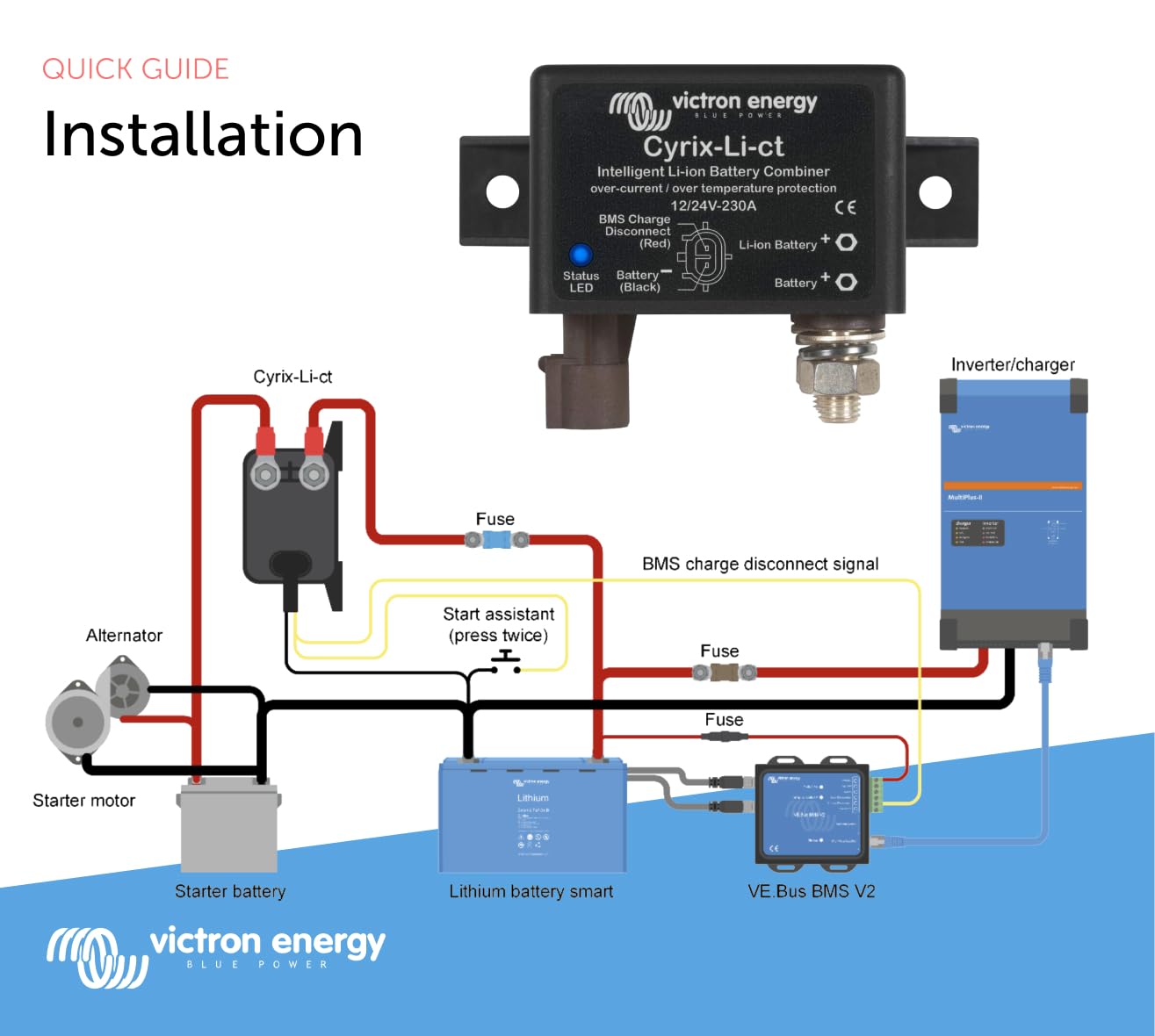

Parallel connect a lead-acid starter battery and a LiFePO4 house battery with the Victron Energy Cyrix-Li-ct 12/24V 230A Intelligent Li-ion Battery Combiner. This combiner works with VE.Bus BMS and disengages on cell overvoltage or over temperature. Priced at $53.50 (compare at $110) – a 50% savings, ideal for lithium battery installations.
Specifications
- Brand: Victron Energy
- Model: Cyrix-Li-ct
- Voltage: 12/24V auto-detect
- Current Rating: 230A continuous
- Compatibility: LiFePO4 batteries, VE.Bus BMS
- Start Assist: Short negative pulse closes relay for 30 sec
- Protection: Transient voltage suppressor
Key Features
Safe for Li-ion Batteries
Disengages immediately if the BMS signals cell overvoltage or over temperature, protecting your battery bank.
Start Assist
Energize the relay for 30 seconds with a short negative pulse to start a vehicle in emergencies.
BMS Integration
Connects directly to a VE.Bus BMS for seamless control.
How Does It Work with VE.Bus BMS?
When the VE.Bus BMS detects a cell overvoltage or over temperature, its control output becomes free floating, causing the Cyrix-Li-ct to disengage. This prevents damage to the Li-ion battery.
Compatibility and Use Cases
For systems with a lead-acid starter battery and a LiFePO4 house battery. Common in marine, RV, and off-grid setups where lithium is used.
Comparison with Cyrix-Li-Charge
The Cyrix-Li-ct is a combiner that connects and disconnects batteries, while the Cyrix-Li-Charge is a charge relay that only allows charging. For integrating lithium with a starter battery, the Cyrix-Li-ct is recommended.
Price Value and Deal
At $53.50, you save $56.50 off the original price. Free shipping on orders over $45 – this item qualifies. Use coupon SAVE10 for extra 10% off.
