Victron Energy BatteryProtect 12/24-100 disconnects loads to prevent battery damage, and at $26.78 (50% off), it's the affordable safe-guard for your 12/24V system.
Size
Categories : Power Accessories
SKU : IRO-POW-075
Share This:

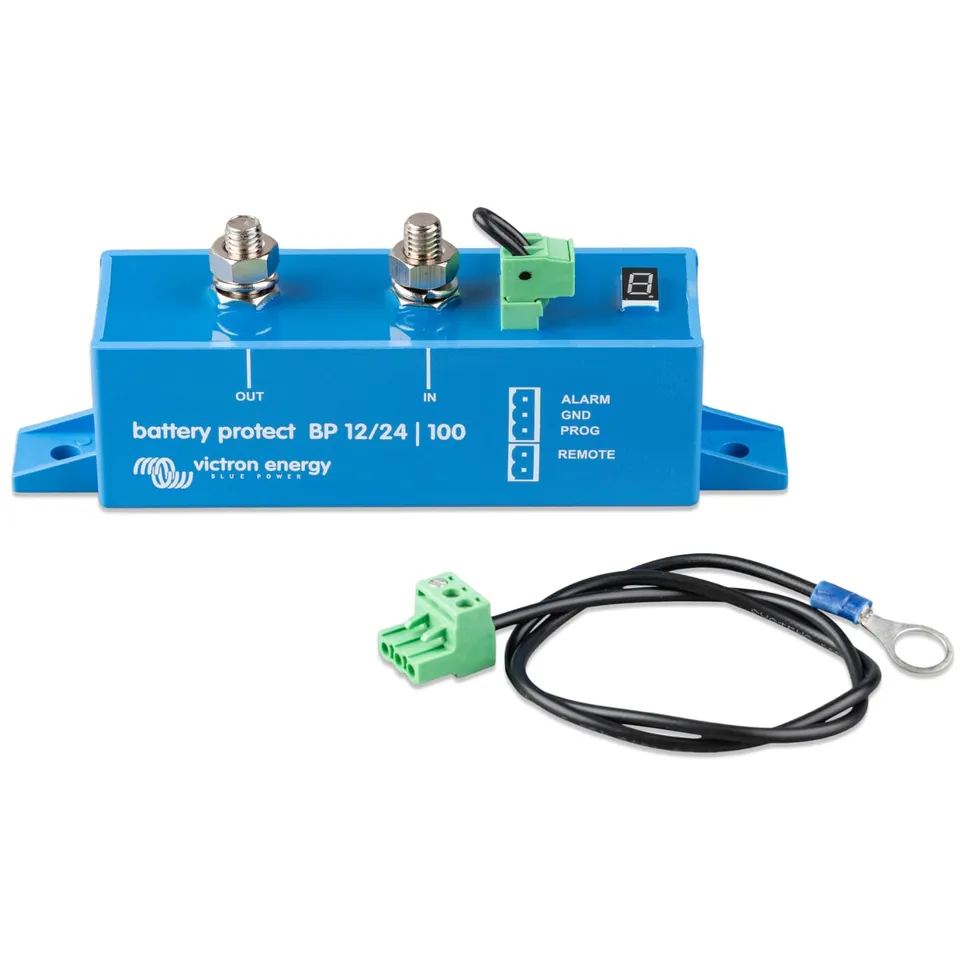

Protect your batteries from deep discharge with the Victron Energy BatteryProtect 12/24-Volt 100 amp. This intelligent device disconnects non-essential loads before the battery is over-discharged, preventing damage and ensuring reliable engine cranking. Perfect for RVs, boats, and off-grid electrical systems.
For only $26.78 (compare at $53.55), you get a 50% discount off the list price. Use coupon SAVE10 for an extra 10% off. This is the perfect upgrade to protect your battery investment.
Wiring is straightforward: connect the BatteryProtect in series with the positive line between the battery and loads. The programming pin allows you to set different voltage thresholds for various battery types. A licensed professional should handle installation to ensure compliance with electrical codes.
Disconnects loads before battery damage, extending battery life and improving reliability.
Auto-detects 12V or 24V systems and handles 100A continuous (600A peak).
Only $26.78—half the regular price—plus 10% off with code SAVE10.
Model: BatteryProtect 12/24-100
Peak Current: 600A (30 seconds)
Product Type: Battery Protection Device
Voltage Range: 12/24V auto-ranging
Continuous Current: 100A
Low Voltage Disconnect: Programmable via seven-segment display
Seller: Iron Bridge Tools
MPN: BatteryProtect 12/24-100
The Victron BatteryProtect is an essential component for any 12V or 24V electrical system. It prevents over-discharge, which can permanently damage batteries. With programmable voltage thresholds, you can tailor it to your battery type and load requirements.
Use it in RVs, boats, or off-grid solar systems to protect your house batteries. It's also great for emergency vehicles where cranking power is critical.
At only $26.78, it's a small price to pay for peace of mind. Plus, SAVE10 gives you another 10% off. Add it to your cart today and save big.

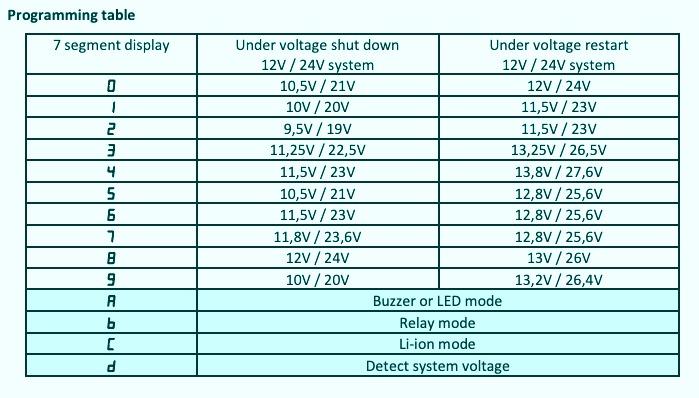

The BatteryProtect can be programmed to engage/disengage at various voltages using the seven-segment display and the programming pin. Typical settings are 11V disconnect for 12V systems and 22V for 24V systems. Wiring involves connecting the device in series with the positive load line.
Connect the programming pin to the negative terminal (or battery minus) briefly to enter programming mode. Use the seven-segment display to select voltage thresholds. Detailed instructions are in the manual.
E1 indicates an undervoltage shutdown—the battery voltage dropped below the disconnect threshold and the unit turned off loads. This is normal protection behavior.
To set the low voltage disconnect, program the desired voltage threshold using the programming pin. The unit will disconnect loads when voltage falls below that level and automatically reconnect when voltage rises above the reconnect threshold.

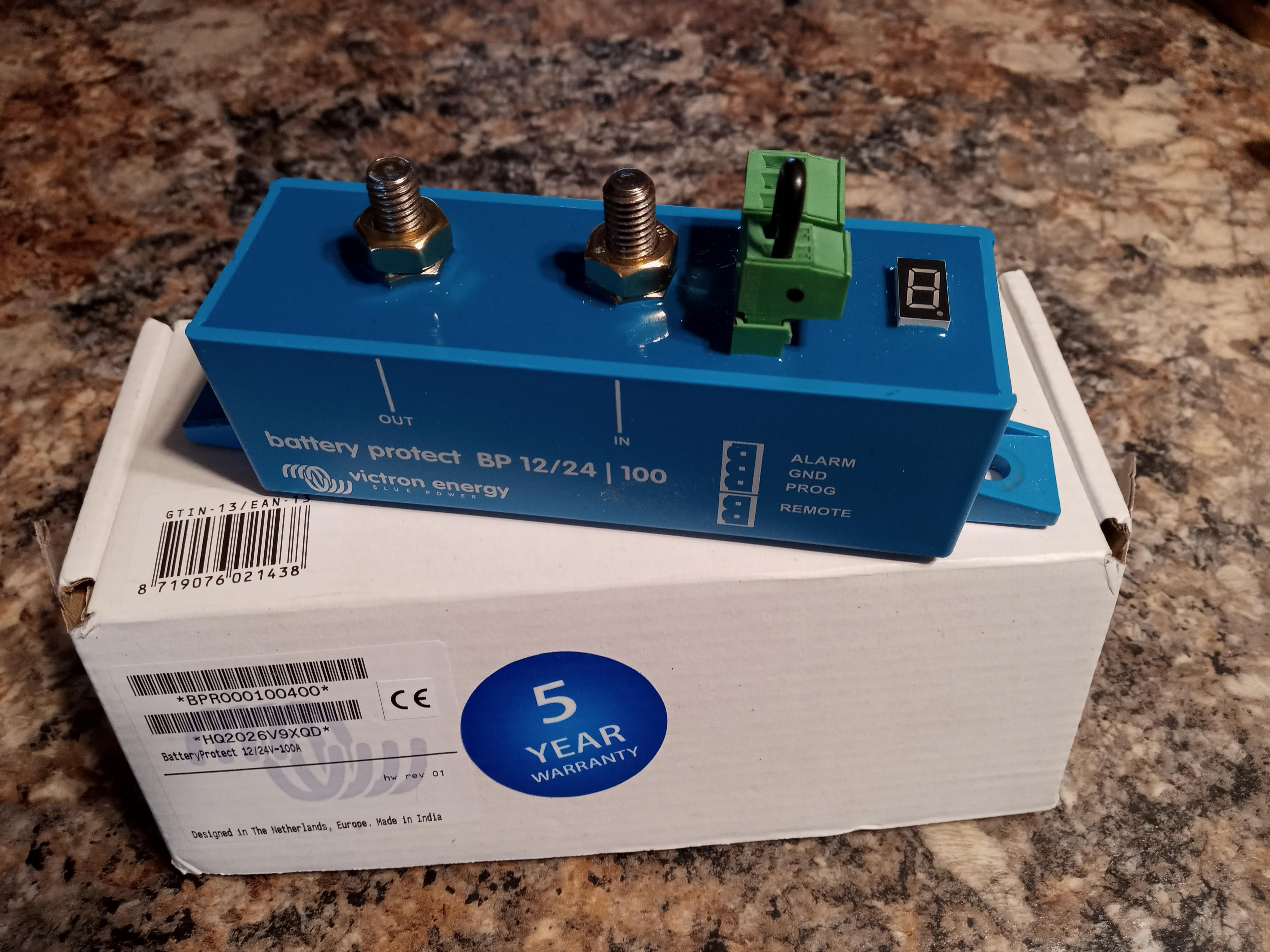

This battery protect unit is exactly what I needed to prevent over-discharging my batteries. Easy to install and works perfectly. The LED indicators are helpful. Great value for the price.

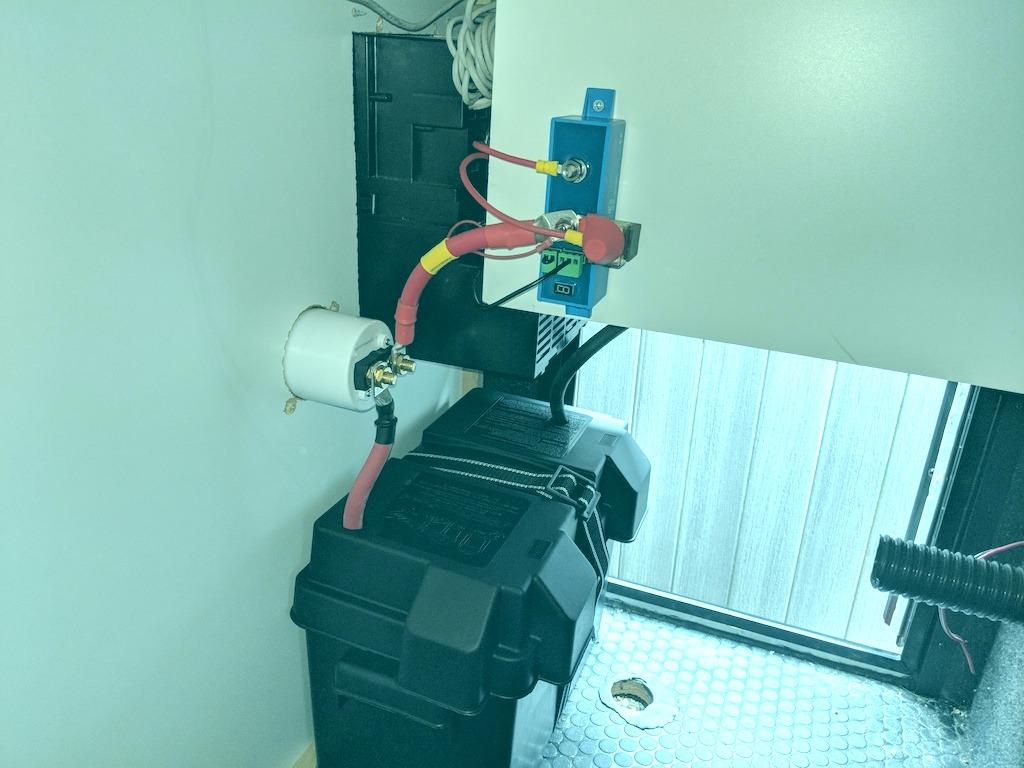

The unit works well and does its job. However, the wiring diagram is a bit confusing for a beginner like me. Once I figured it out, everything was fine. I've had no issues since.
It does what it says, but the low voltage disconnect is set at 10.5V which is a bit low for my 12V system. I wish it was adjustable. It's a decent product for the price.
I added this to my RV's electrical system and it's been flawless. It disconnects my loads when the battery gets low, preventing damage. The installation was straightforward. Highly recommend.
It's a simple and effective device. I use it to protect my trolling motor battery. It works as advertised. Only downside is the lack of an on/off switch on the unit, but it's not a deal-breaker.
